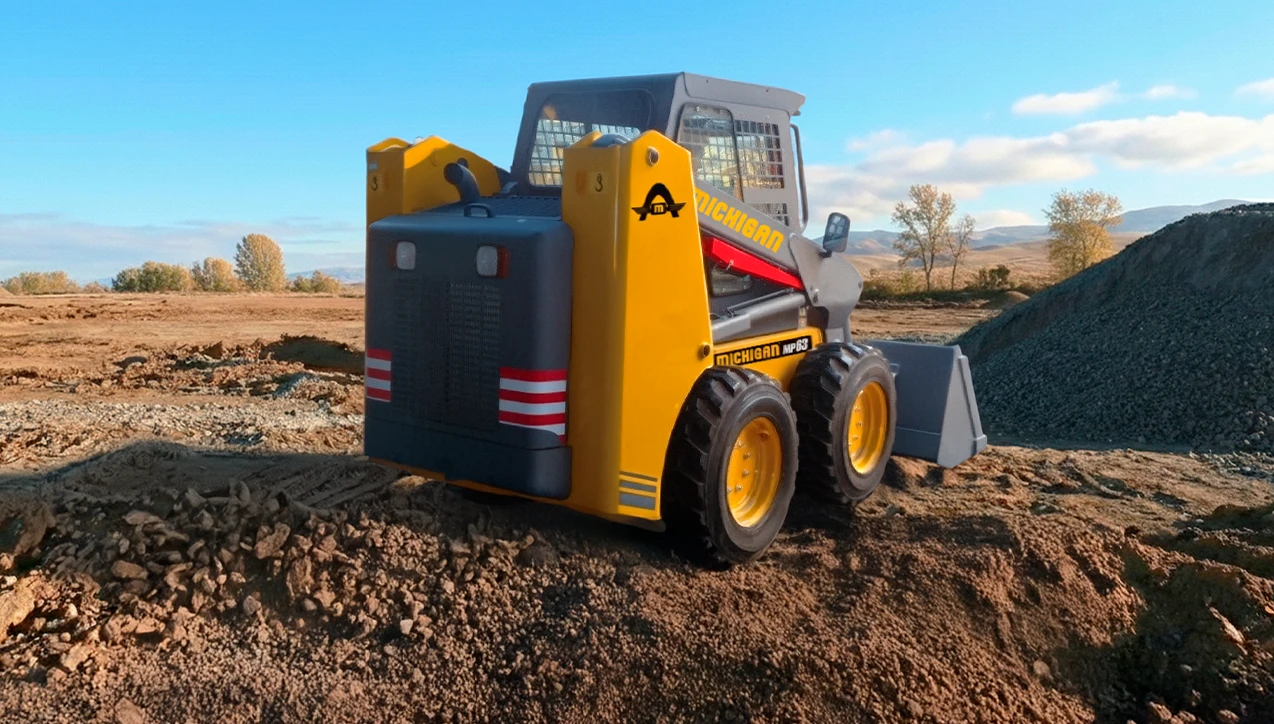

MP63 Compact Wheel Loader - Michigan Group

The MP63 Mini Skid Steer Loader is a compact, versatile machine designed for material handling, landscaping, construction, agriculture, and property maintenance. Its skid-steer steering system provides excellent maneuverability, allowing it to operate efficiently in confined or narrow spaces.

PRODUCT DETAILS

Technical Parameters

Rated payload: 1.200 kg
Bucket capacity: 0.56 m³
Tipping load: 24 KN
Breakout force: 15 KN
Traction force: 34 KN
Length x Width x Height: 3.866 × 1.867 × 2.142 mm

Engine

Engine model: V3307-TE5AB-LKN2-5
Rated power: 52.6kW/2600rpm
Displacement: 3.3 L
Fuel consumption: 220 g/(kW • h)
Stroke: 120 mm
Bore: 94 mm
Emission standard: EPA Tier 4F & Euro V

Dimensions

A – Maximum operating height: 4.367 mm
B – Bucket pin height: 3.274 mm
C – Cab roof height: 2.142 mm
D – Maximum height with leveled bucket: 3.070 mm
E – Length without attachment: 2.767 mm
F – Length with standard bucket: 3.866 mm
G – Dump angle at maximum height: 42°
H – Dump height: 2.364 mm
J – Reach rollback: 1.098 mm
K – Bucket angle on the ground: 26°
L – Bucket rollback angle at maximum height: 88°
M – Wheelbase: 1.193 mm
P – Ground clearance: 215 mm
Q – Start angle: 30°
R – Front turning radius without attachment: 1.401 mm
S – Front turning radius: 2.471 mm
T – Rear turning radius: 1.684 mm
U – Tail length: 979 mm
V – Center distance between wheels: 1.508 mm
W – Bucket width: 1.867 mm
